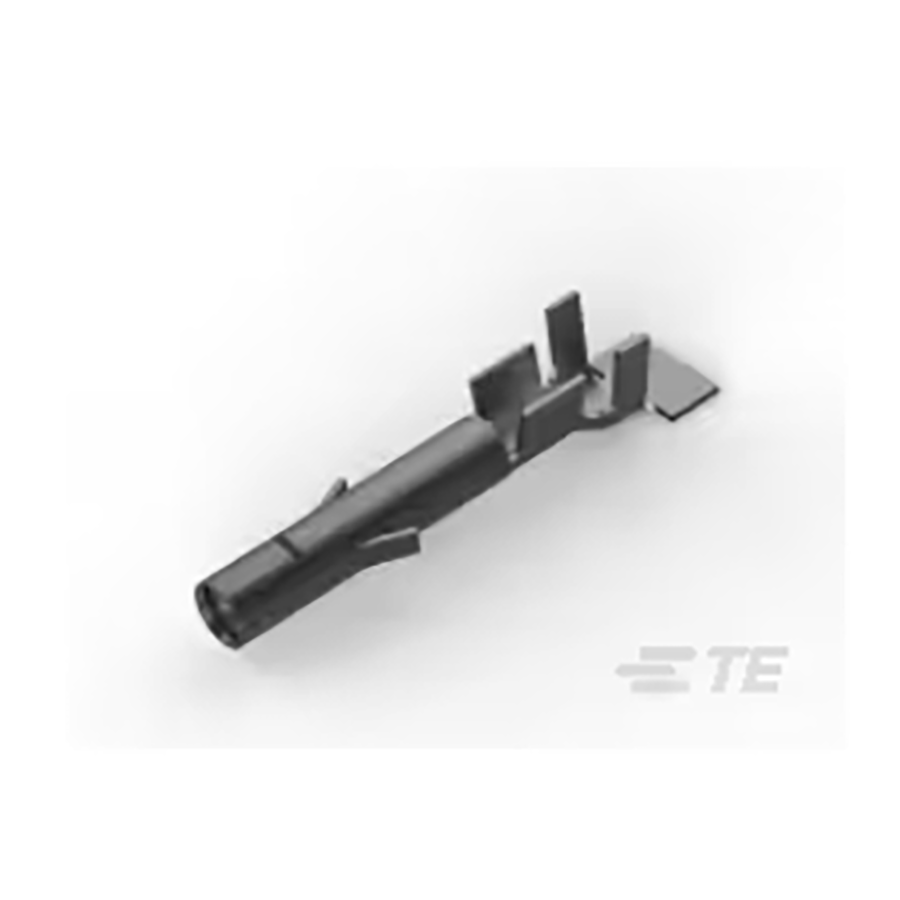

926893-1
Manufacturer:
TE Connectivity
Mfr.Part #:
926893-1
Datasheet:
Description:
IC and Component Sockets Cable Connector, Power, Socket
| Parameter | Value |
|---|---|
| Length | 20.1 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 600 V |
| Number of Pins | 1 |
| Height | 4.5 mm |
| Material | Brass |
| Packaging | Reel |
| Voltage Rating | 600 V |
| Depth | 4 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | |
| Current Rating | 19 A |
| Max Current Rating | 19 A |
| Approvals | UL |
| Orientation | Straight |
| Operating Supply Voltage | 600 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Gender | Socket (Female) |
| Shielding | Unshielded |
| ELV | Compliant |
| Connector Type | Connector, Power, Socket |
| Wire/Cable Gauge | 20 AWG to 14 AWG |
| Number of Positions | |
| Number of Rows | |
| Row Spacing | |
| Wire/Cable Type | Discrete |
| Circuit Application | Power |
| Connector System | Wire-to-Wire |
| Contact Style | Socket |
| Contact Current Rating | 19 A |
| Wire Gauge (Max) | 14 AWG |
| Wire Gauge (Min) | 20 AWG |
| Insulation Diameter | 3.302 mm |
| Contact Gender | Female |
| VDE Tested | Yes |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Contact Retention | With |
| Contact Finish - Mating | |
| Termination Style | Crimp |
Stock: 85816
Distributors
pcbx
pcbxUnit Price$0.10003
Ext.Price$0.10003
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.10003 | $0.10003 |
| 10 | $0.09319 | $0.93190 |
| 50 | $0.09190 | $4.59500 |
| 100 | $0.09063 | $9.06300 |
| 500 | $0.08624 | $43.12000 |
| 1000 | $0.08206 | $82.06000 |
| 3000 | $0.07808 | $234.24000 |
| 5000 | $0.07430 | $371.50000 |
| 10000 | $0.07070 | $707.00000 |
